Fittings & Flanges
In grade
WPHY 52 / LF2 / F52
Applicable standards and spesifications:

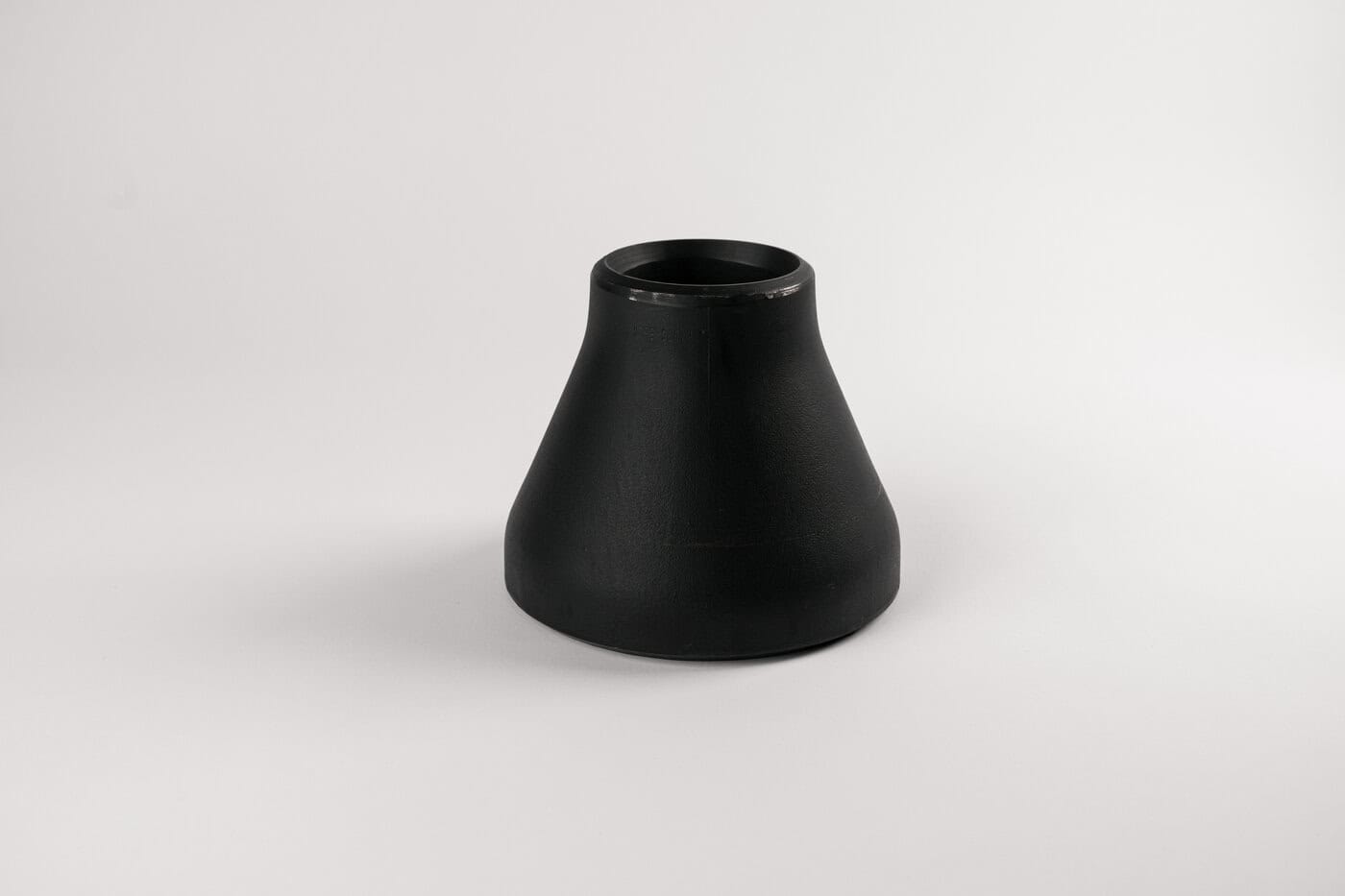

Flanges / Elbows / Concentric reducers / Eccentric reducers etc.
• ASTM A860
• ASTM A694
• ASME B16.9 – B16.25
• NACE MR 0175 ISO 15156 HRC MAX22
• NORSOK M-630
• Certificate EN 10204-2004 3.1
Information
High-Yield Piping Components (NORSOK Compliant)
This product group covers high-yield carbon steel components for low-temperature and sour service, fully compliant with NORSOK M-630.

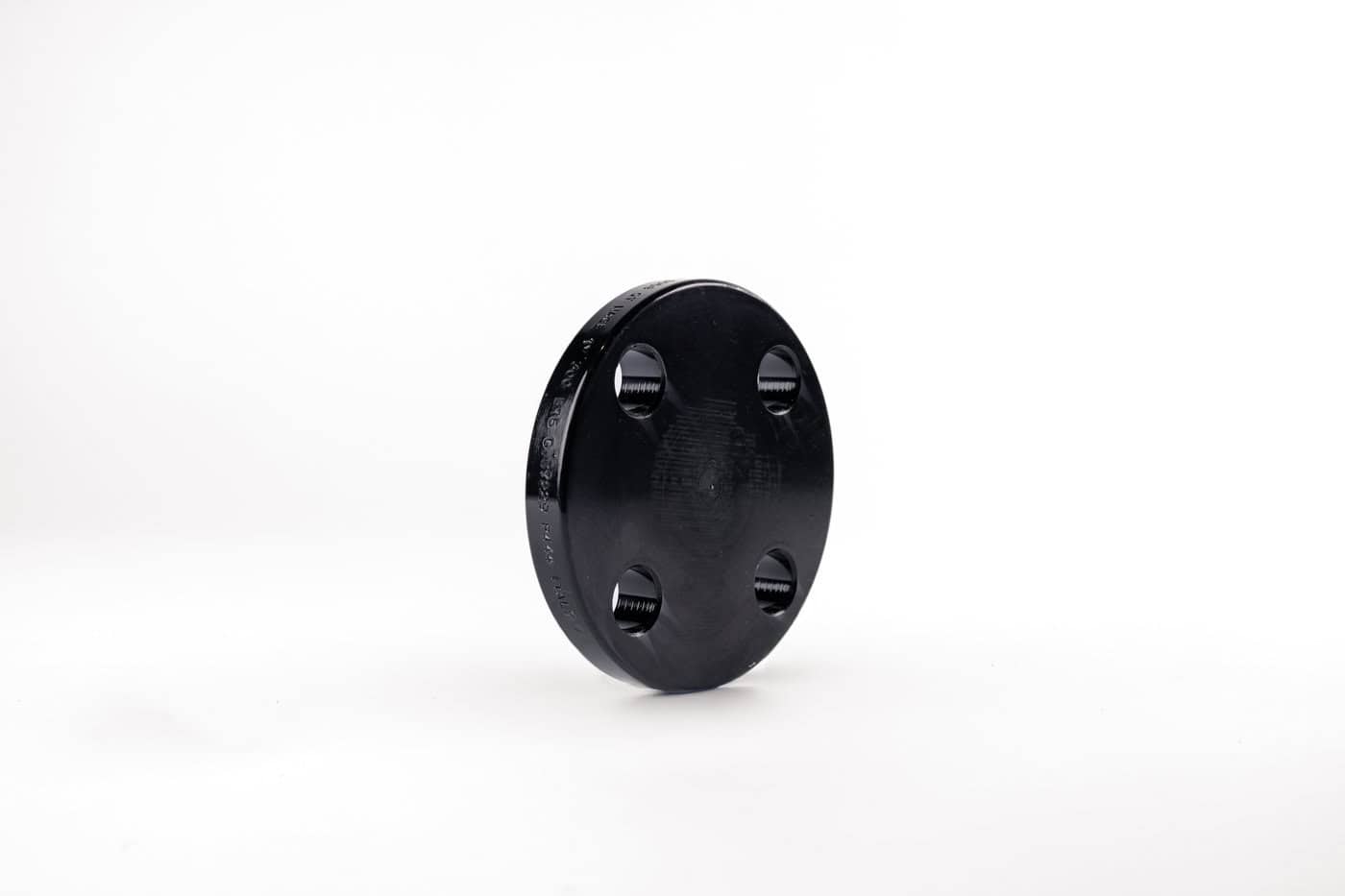

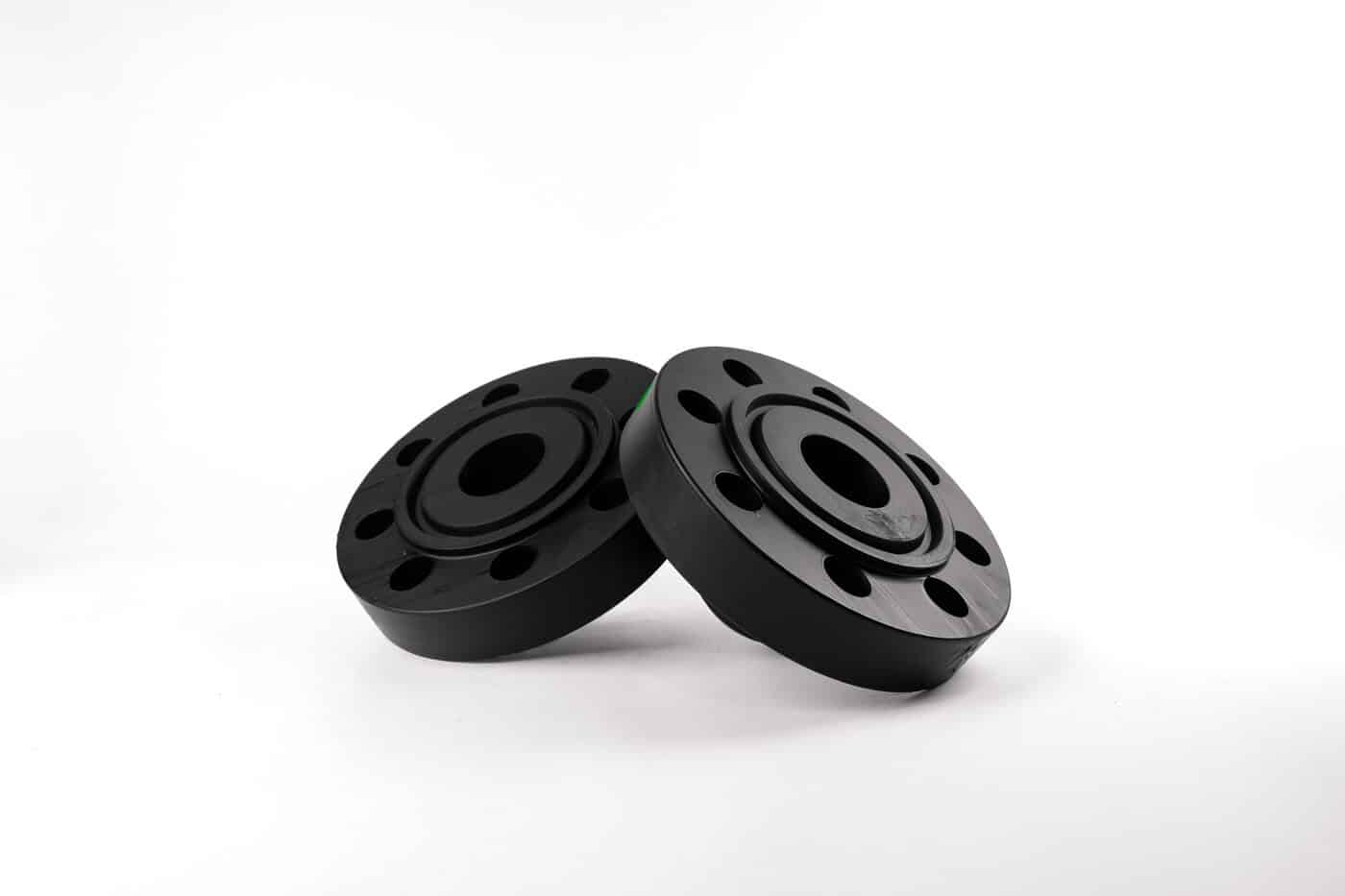

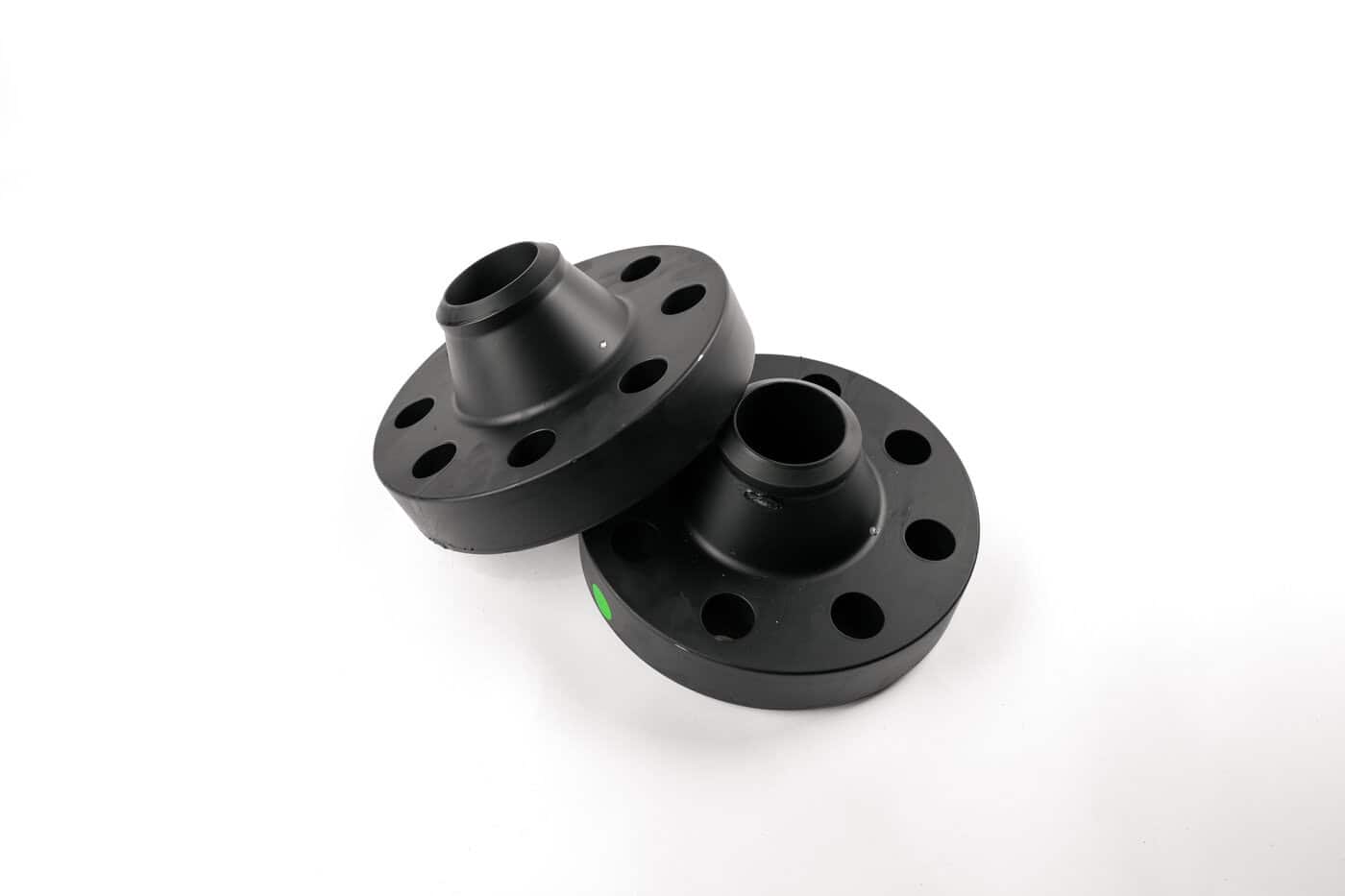

1. Flanges (Dual Certified)
- Material: Dual Certified ASTM A694 F52 and ASTM A350 LF2.
- Standard: ANSI/ASME B16.5.
- MDS: NORSOK MDS C21 Rev. 5 / C11 Rev. 5.

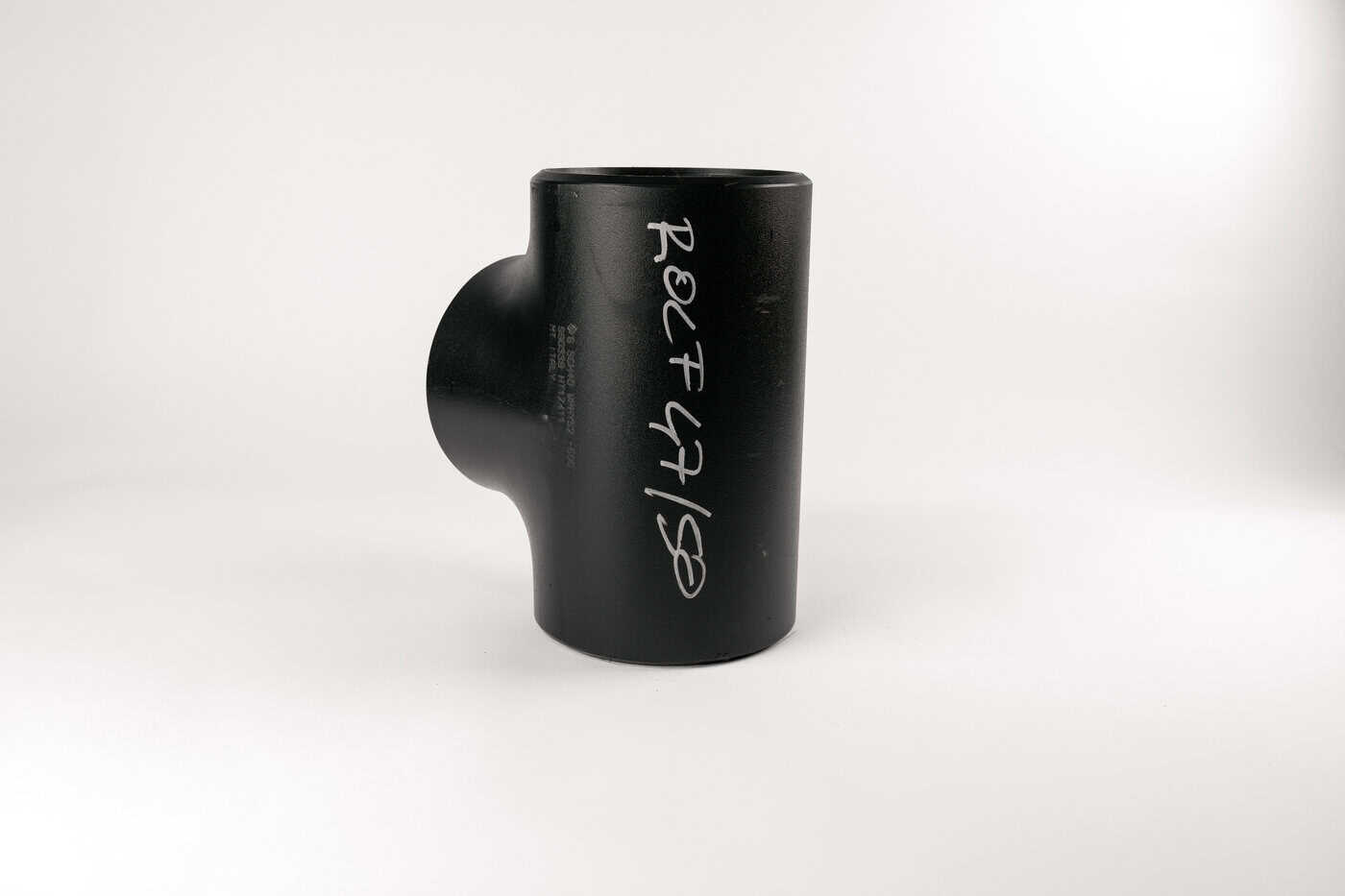

2. BW Fittings
- Material: ASTM A860 WPHY 52.
- Standard: ANSI/ASME B16.9.
- MDS: NORSOK MDS C53.
Key Testing Requirements:
- Impact Testing: Performed at -50°C for all thicknesses. Fittings must meet 41J Average / 33J Single requirements.
- Hardness Testing: Conducted according to NACE MR0175 / ISO 15156. For fittings, testing frequency follows tensile test requirements.

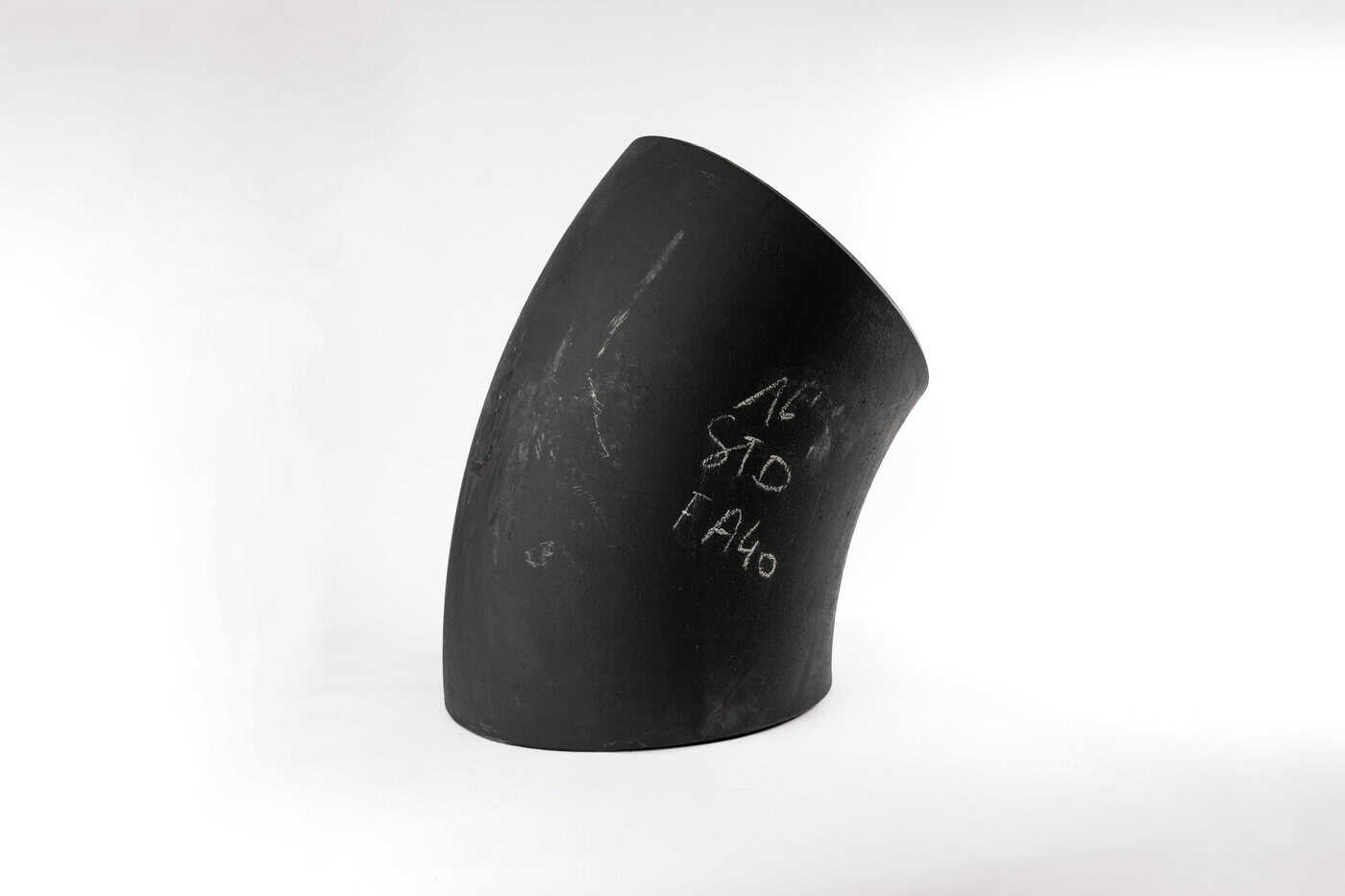

- NDT (Fittings): 100% Magnetic Particle Examination (MPE) for all elbows produced by the mandrel method, regardless of wall thickness.
- Documentation: All test results (Hardness/Impact) is stated in the EN 10204 3.1 Material Test Certificates.
